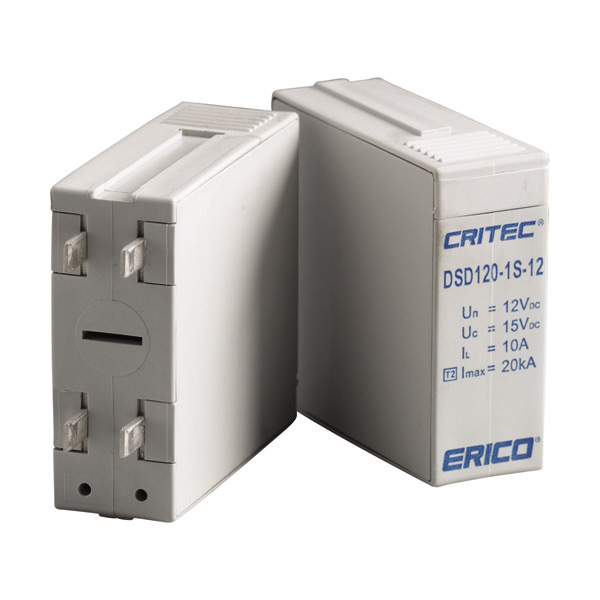

DSD1201S12M replacement Module for DSD1201S12

Description Download Product Brochure here https://www.erico.com/part.asp?part=DSD1201S12M SPECIFICATIONS Part Number DSD1201S12M Article Number 702675 Nominal System Voltage (Un) 12 VDC Max Continuous Operating Voltage (Uc) 15 VDC Nominal Discharge Current (In), Per Mode 10 kA 8/20 μs Max Discharge Current (Imax), Per Mode 20 kA 8/20 μs Voltage Protection Level (Up) 30 V @ 3 kA Frequency 0 – 60 Hz Technology Gas Discharge Tube (GDT) Silicon Avalanche Diode (SAD) Enclosure Material UL® 94V-0 Thermoplastic Status Indication Mechanical flag Temperature -40 to 80 °C Module Width 1 M Depth (D) 49 mm Height (H) 45 mm Width (W) 18 mm Unit Weight 0.068 kg Certifications CE Standard Packaging Quantity 1 pc UPC 78285647268 EAN-13 8711893014617
