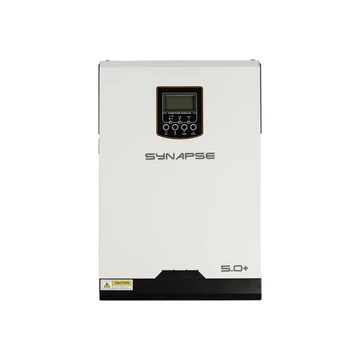

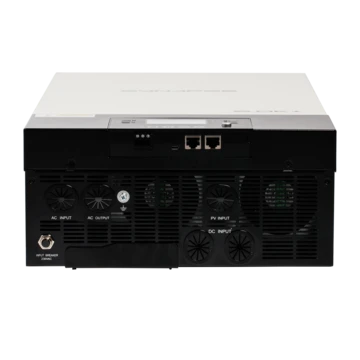

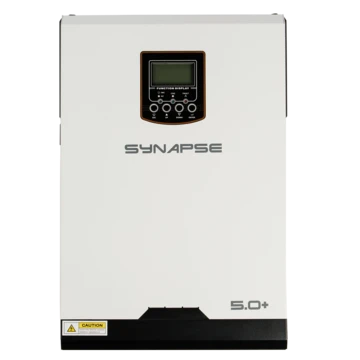

Synapse Offgrid Inverter 5kW 48V DC, 80A MPPT

Description Technical Specifications: Rated Power: 5000W Voltage: 230V AC Surge Power: 5000VA Efficiency: 90-93% Transfer Time: 10mS (for personal computers); 20mS (for home appliances) Waveform: Pure sine wave  Battery: Battery Voltage: 48VDC Floating charge Voltage: 54V DC Overcharge Protection: 63V DC Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = -110A, max. peak current = -220A (depending on battery SOC / terminal voltage). Solar Charger & AC Charger: Max PV Array Power: 4000W Max PV Array VOC: 500V DC MPPT Range @ Operating Voltage: 120 ~ 450V DC Max Solar Charger Current: 80A Max AC Charger: 60A Max total charge current: 80A   Physical: Dimensions: 100 x 300 x 440mm (D x W x H) Weight: 10kgs Communication Interface: USB / RS232 Environment: Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C
