Extractor Motor for Stainless Steel Hoods 9:9 3/4 V

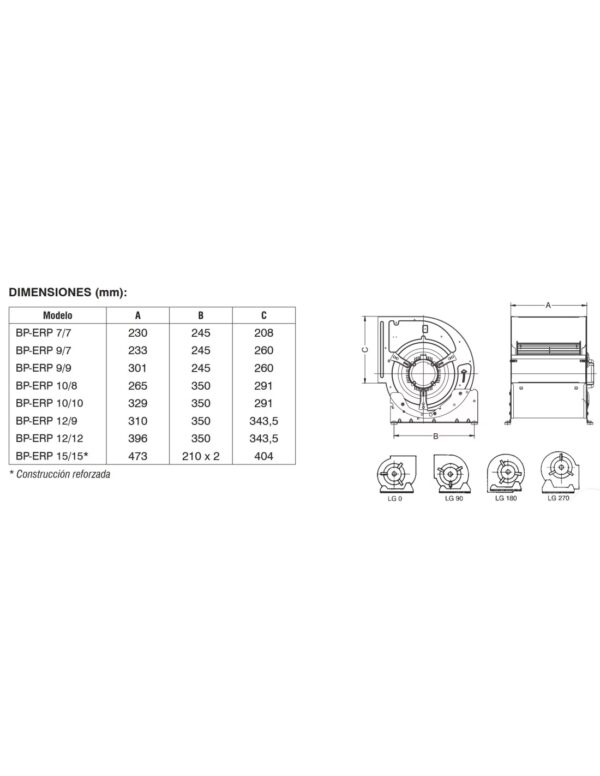

Extractor Motor for Stainless Steel Hoods 9:9 Extractor motor for Inox 9:9 double suction hoods, for placement inside industrial hoods. Features: Enclosure in galvanized sheet metal. Double-inlet forward-curved multi-blade turbine. Glass fiber reinforced polyamide turbine. The fan comes with the support feet included in the price. Exclusive system for fixing the motor to the fan and the turbine using flex arms that, together with silent blocks, prevent any type of vibration. Exclusive design enclosed motor: extruded aluminum housing, connection assembly protected inside the terminal box, integrated into the motor. Motor with IP55 protection and class F insulation. Technical characteristics Outlet dimensions: 329x291mm (WxH) Power: 0,59kW Single-phase I. nominal: 4,5 (A) Maximum flow rate: 3.780 m3/h RPM Speed: 1.340 Sound level: 63 (dBA) Weight: 22Kg Maximum continuous operating temperature: 50°C. Single-phase power supply 230V 50Hz.
